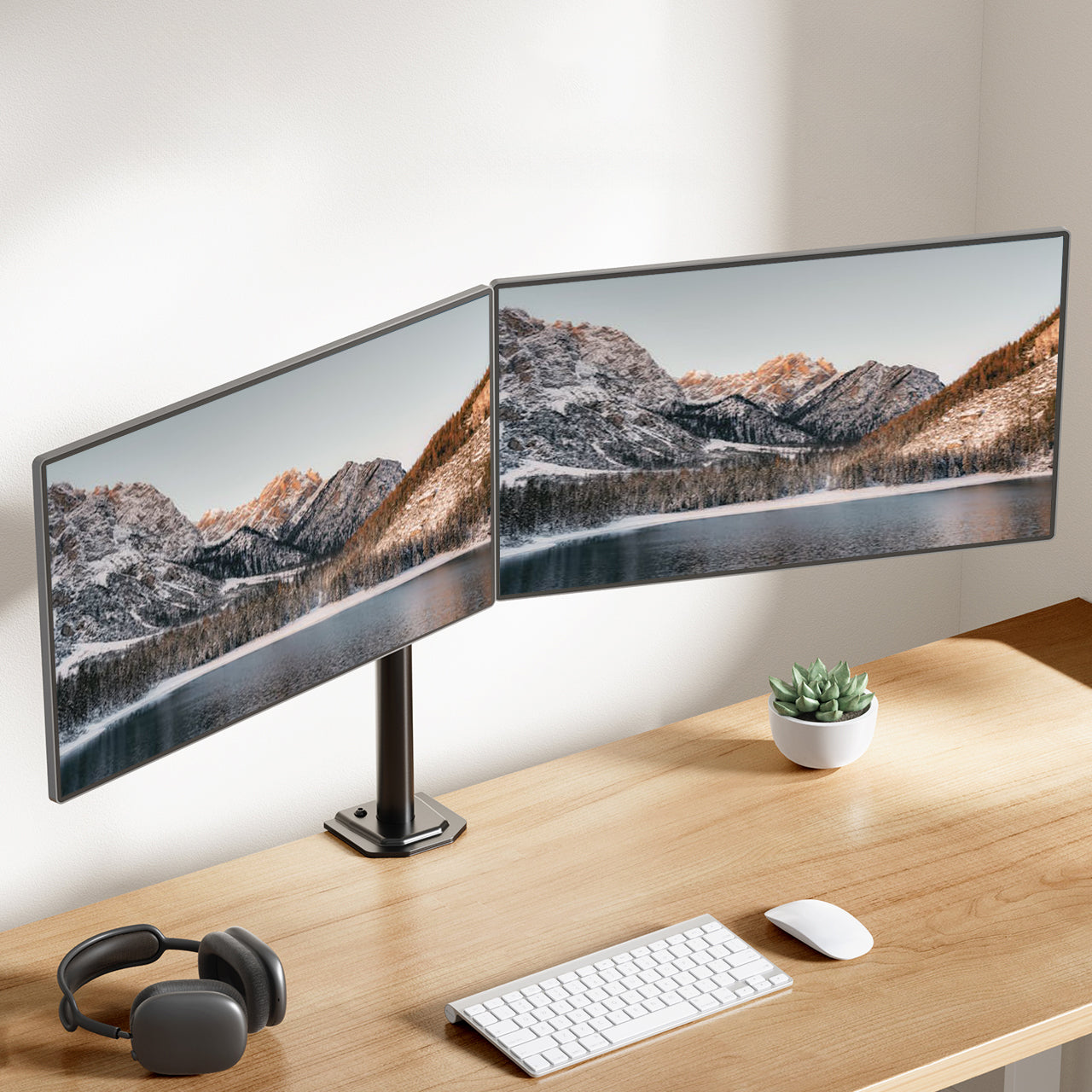

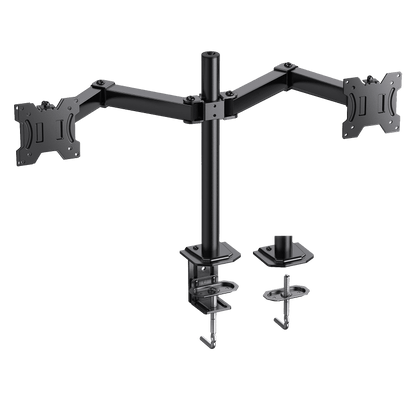

HUANUO HNCM7 Dual Monitor Mount for 2 Monitors Up to 30 Inch Screens

Heavy Duty Dual Monitor Stand Holds up to 22 lbs, Dual Monitor Arm with Height Adjustable Tilt Swive Rotate, VESA Hole 75mm or 100mm
Regular price $49.99
$49.99 $49.99
Sale Sold out
Product Type

  • Hassle-Free
    Warranty
    Hassle-Free Warranty
  • 24-Month
    Warranty
    24-Month Warranty
  • Free
    Shipping
    Free Shipping
  • 30-Day
    Money Back
    30-Day Money Back

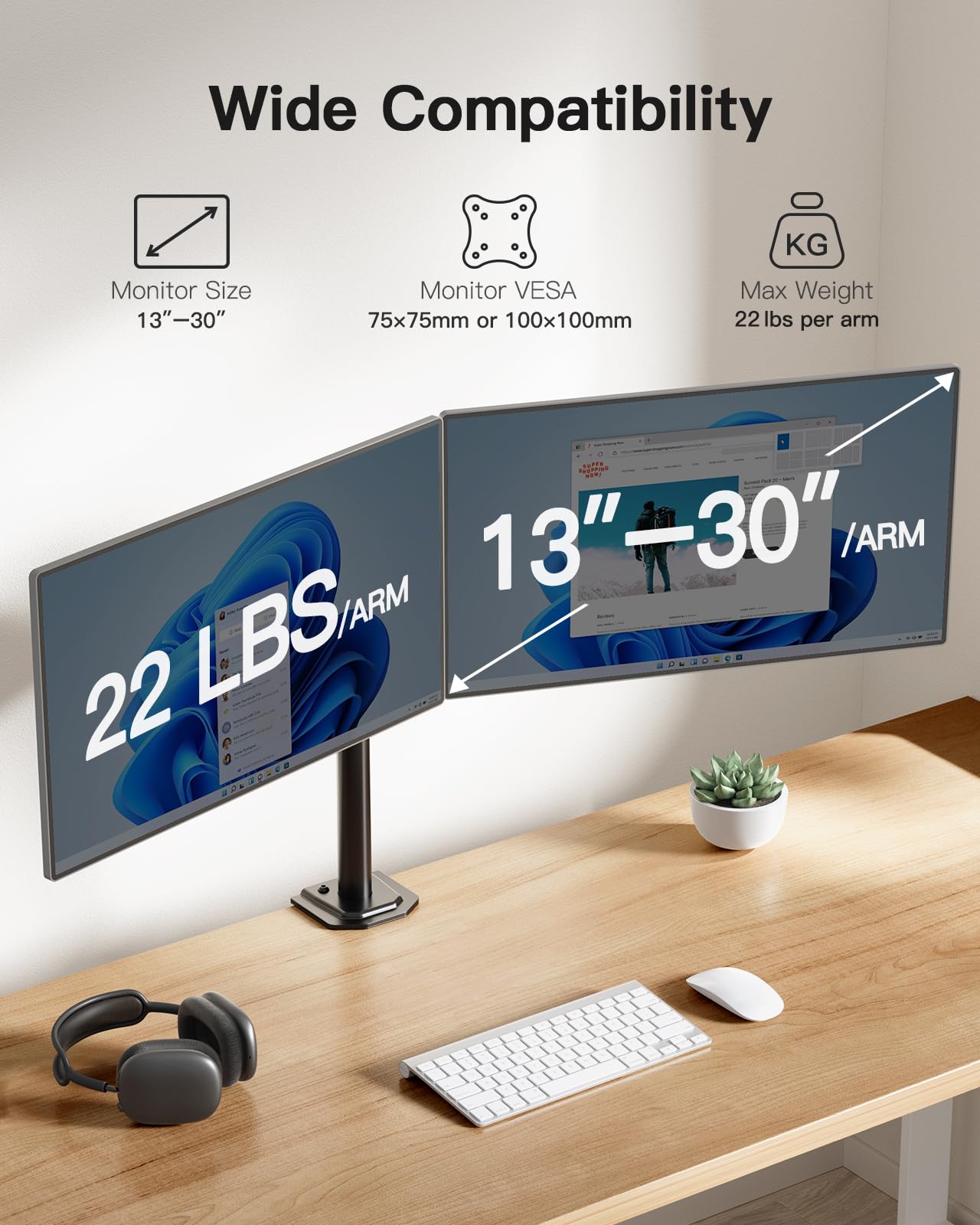

  • Wide Compatibility: Dual monitor mount each arm can holds 2 monitors up to 30 inches, maximum load capacity 22 lbs, compatible screen backside VESA mounting holes 75x75mm or 100x100mm.

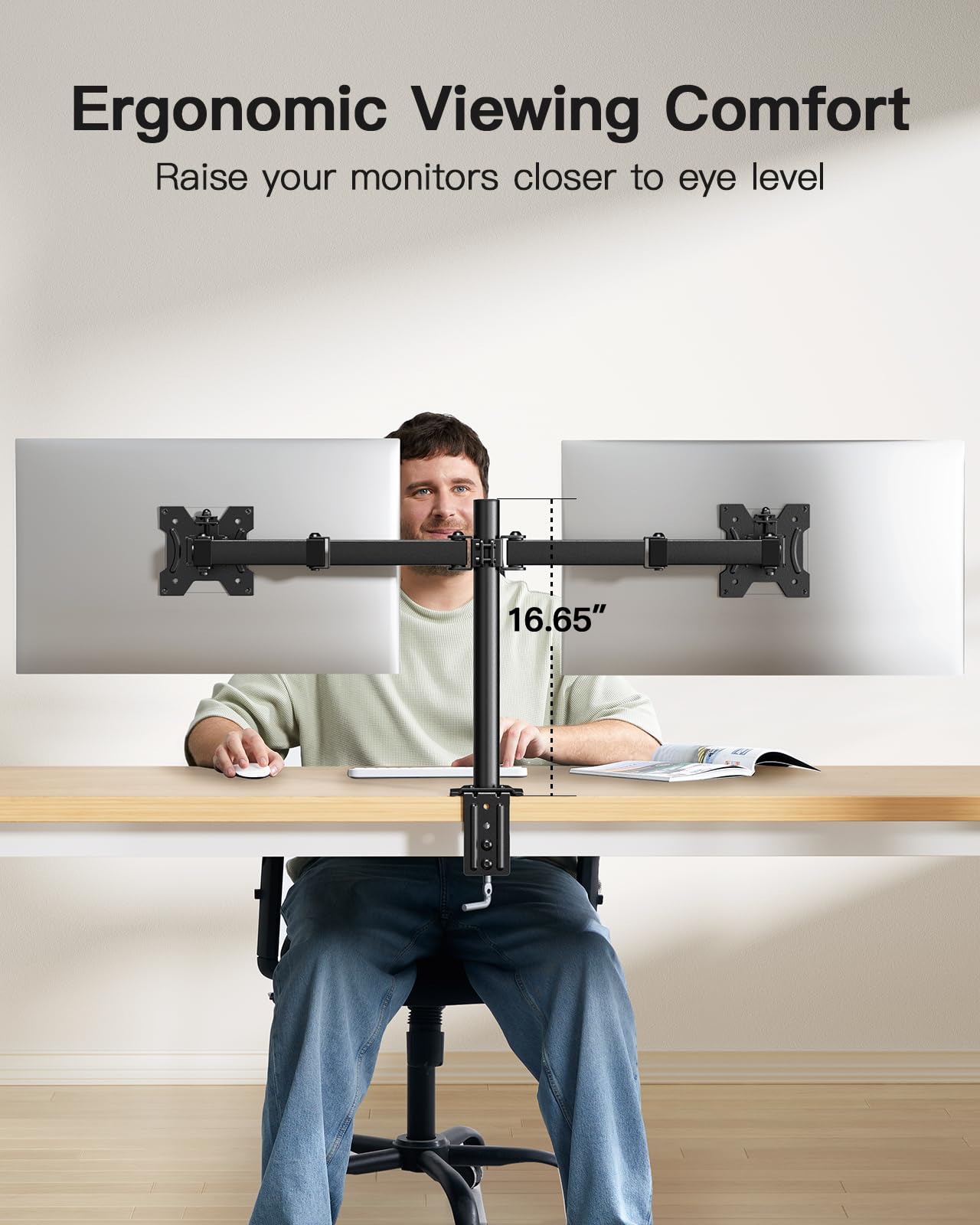

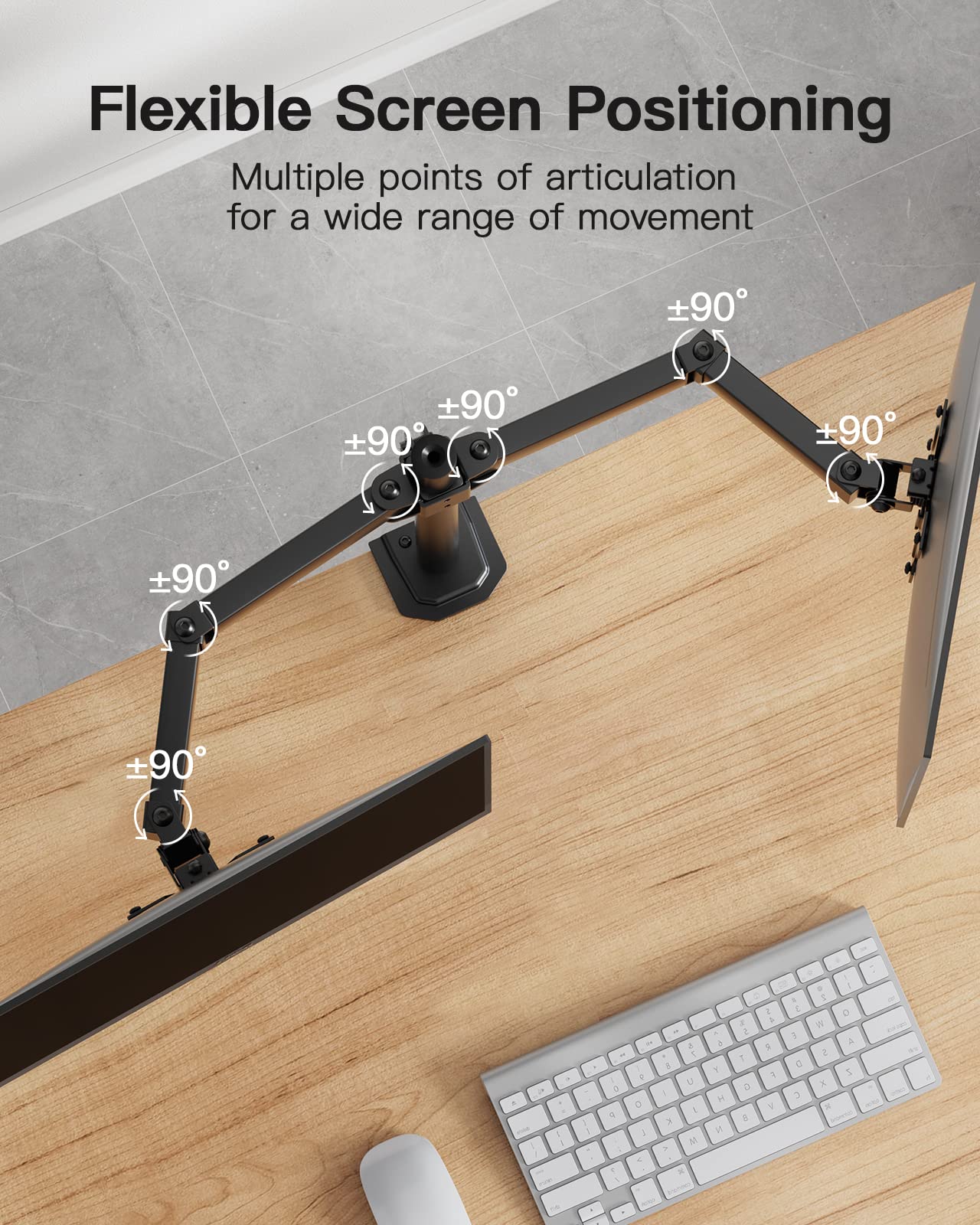

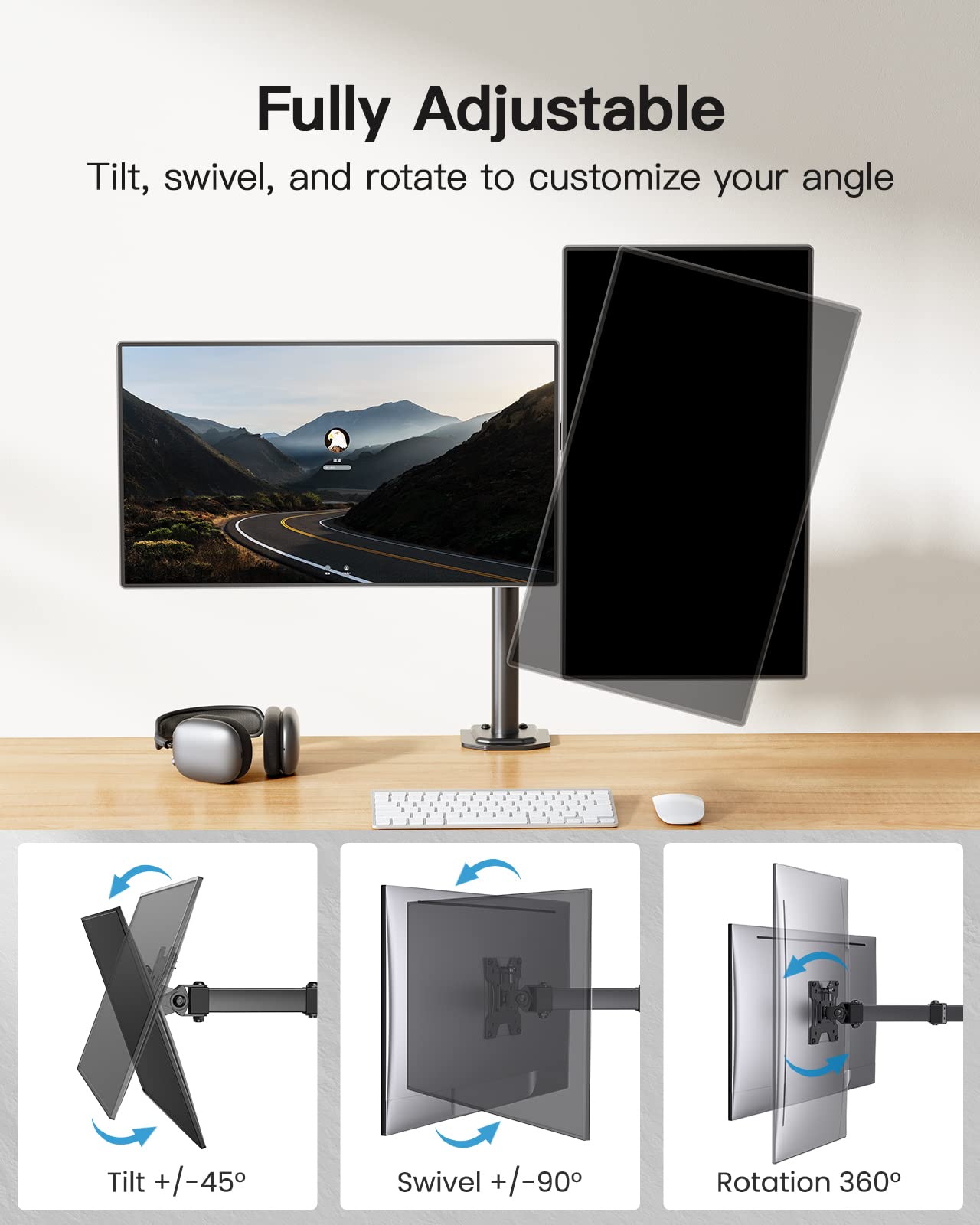

  • Flexible Adjustment: The dual monitor arm has a healthy range of adjustment that includes 16.63 inches of height adjustable, 45 degrees of tilt, 360 degrees of rotation, and 180 degrees of swivel. Various adjustment functions help placing your monitors to the position that fits you optimal. Work in ergonomic comfort.
  • Heavy Steel Fabrication: The dual monitor mount has excellnet sturdiness and stability because it is made of toughened steel, each monitor arm holds up to 22 lbs. One can also tighten or loosen each joint of the dual monitor mount to make movement tight or lose without fear of dropping over time.
  • Save 50% Desk Space: HUANUO dual monitor arm can lift two monitors up at the same time to save more than 50% of desktop space, especially suitable for small desktop. Additional concealed wiring design to hold the cords and keep them organized, keep your desk tidier, make work more comfortable.

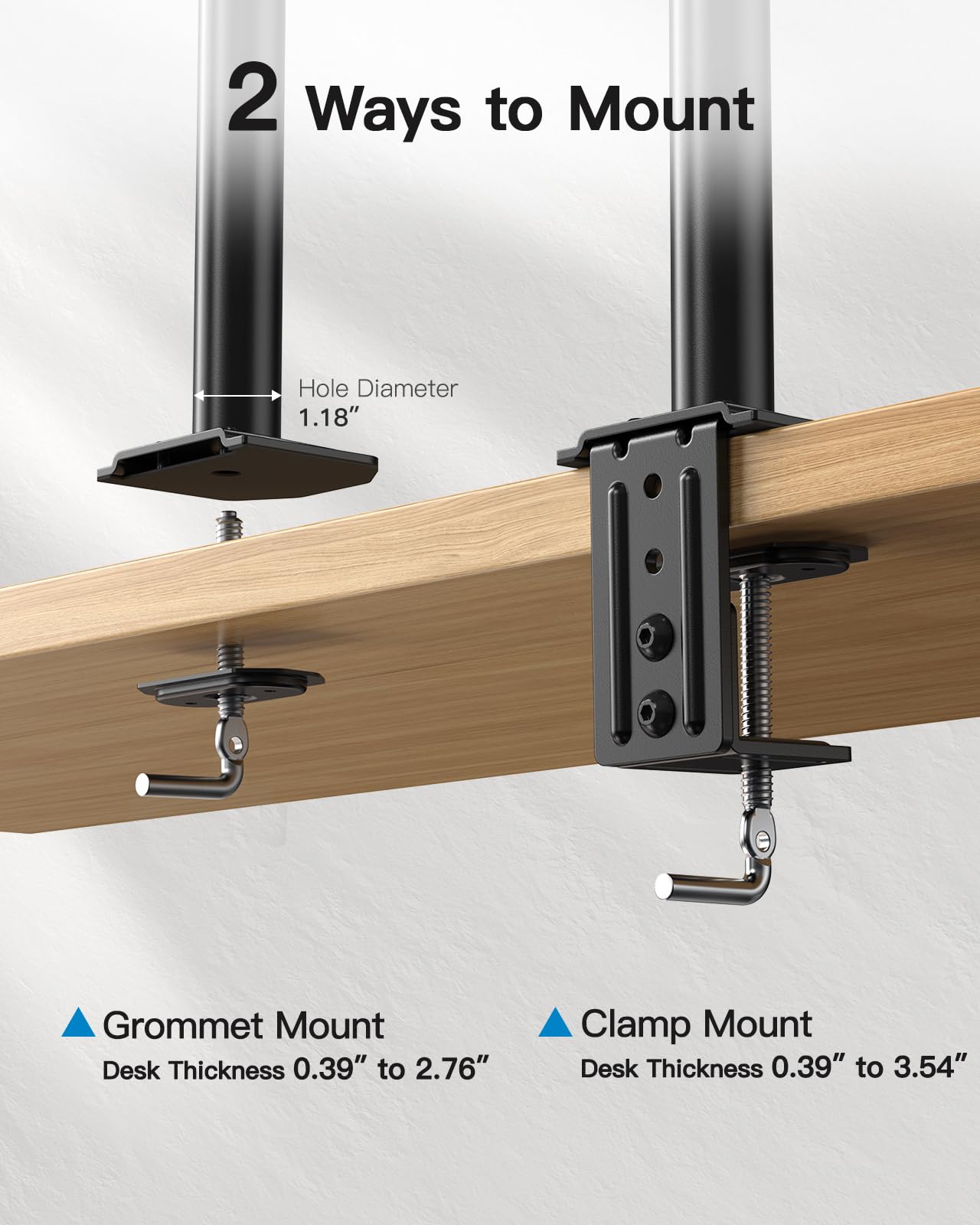

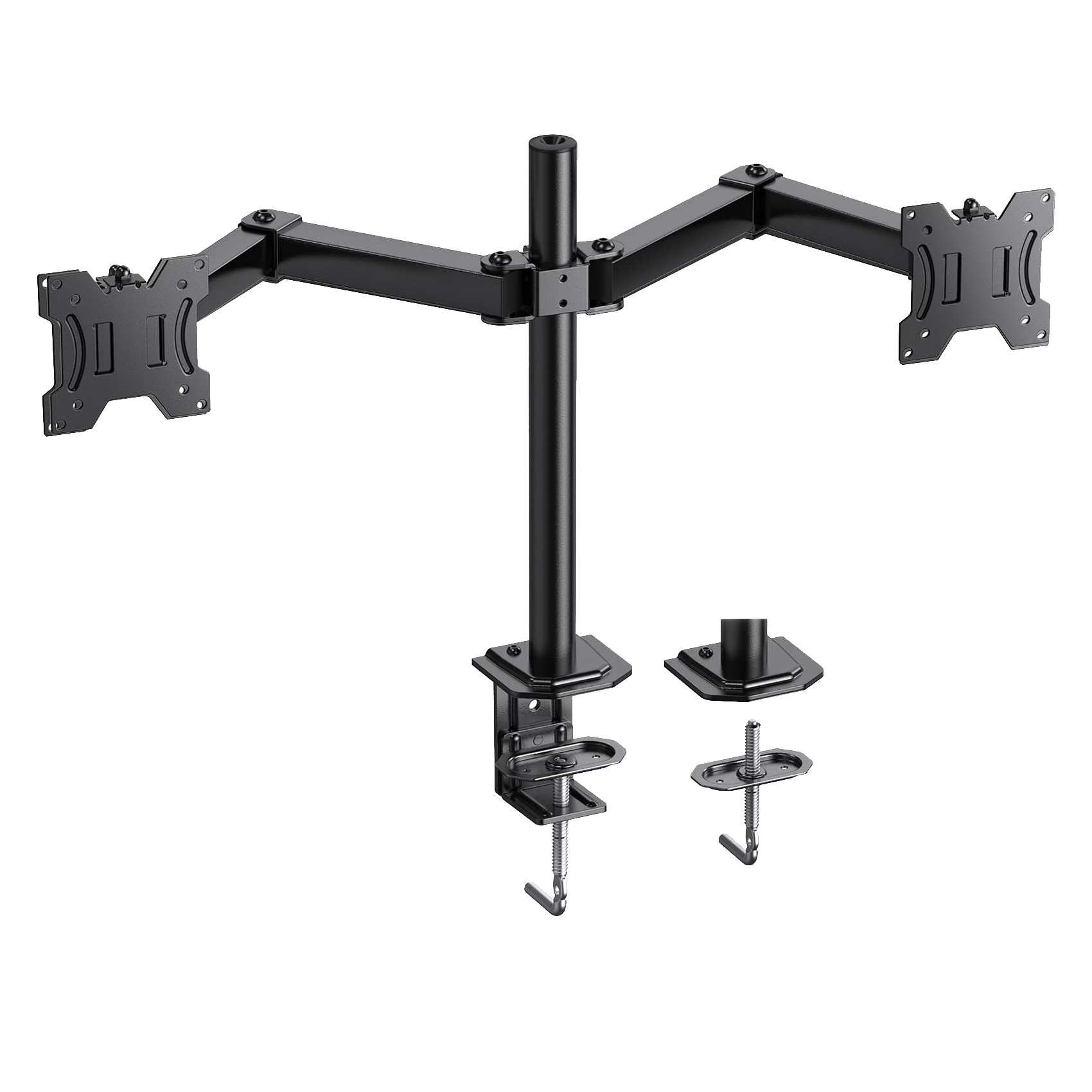

  • Easy Installation: Double monitor mount with 2 separate mounting choices: "C" clamp and Grommet mount. "C" Clamp mount is the most common for home office use, fits over an an edge that’s free of obstructions on both the top and bottom of the desk, fits desktop thickness 0.39”-3.54”. Grommet mount fits desktop thickness 0.39”-2.76”, using the hole of the desk, offers supreme stability, can keeping your screen fixed firmly and safely in place.cables.
View full details
Specs
FAQ
Review

Specifications

HNCM7
Model
Articulating Arms
Type
13" to 30"
Monitor Size Range
75x75mm,100x100mm
VESA
+45°/-45°
Tilt
+90°/-90°
Swivel
360°
Rotation
22 lbs
Weight Capacity

HUANUO HNDS6 Introduction Video

FAQ

1. How do I know whether my monitor is compatible with the monitor mount?

  • Ensure your monitor size and weight are within the ranges specified for the monitor mount.


  • Check that the VESA pattern of your monitor (distance between the four bolt holes on the back) is 75 x 75mm or 100 x 100mm. You may need to remove a stand or cover to access the VESA bolt holes. If your monitor doesn't have VESA holes you will need a VESA mount adapter (such as HNMUA4, available on Amazon).



Note: You can also use the HUANUO Monitor Mount Finder tool to see what monitor mounts are compatible with your monitor.

2. Do I need to drill a hole in my desk for monitor mounting?

  • No. There are two mounting options. A C-clamp is included for simple mounting directly on the desk with no drilling or other work required. The alternative grommet hole mounting method requires an existing grommet hole or drilling of a hole, but you do not have to use this method.

3. Can I use a monitor mount on a glass desk?

  • If clamping a monitor mount on surfaces like glass or engineered wood, it is recommended to use an additional Monitor Mount Reinforcement Plate. These accessories provide a solid mounting surface and spread the load to protect the desk and stabilize the monitor mount. This is particularly important if you’re mounting multiple large screens on a dual monitor mount or triple monitor mount.

4. What can I do if my desk frame obstructs the monitor mount clamping position?

  • You can create a suitable clamping surface by placing a solid wooden block under the desktop, level with the desk frame. Alternatively, use grommet hole bolt-through clamping to mount away from the desk frame.

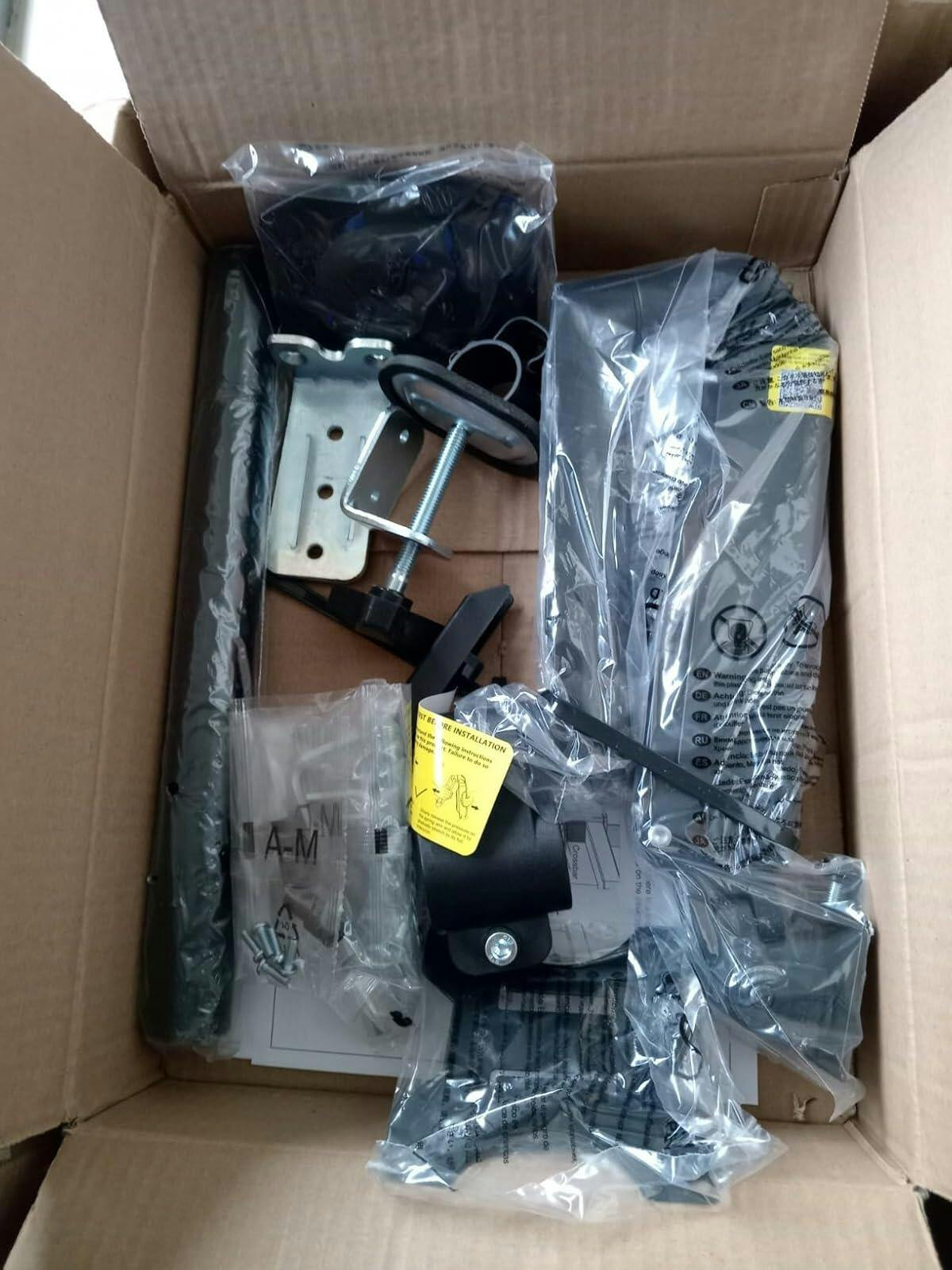

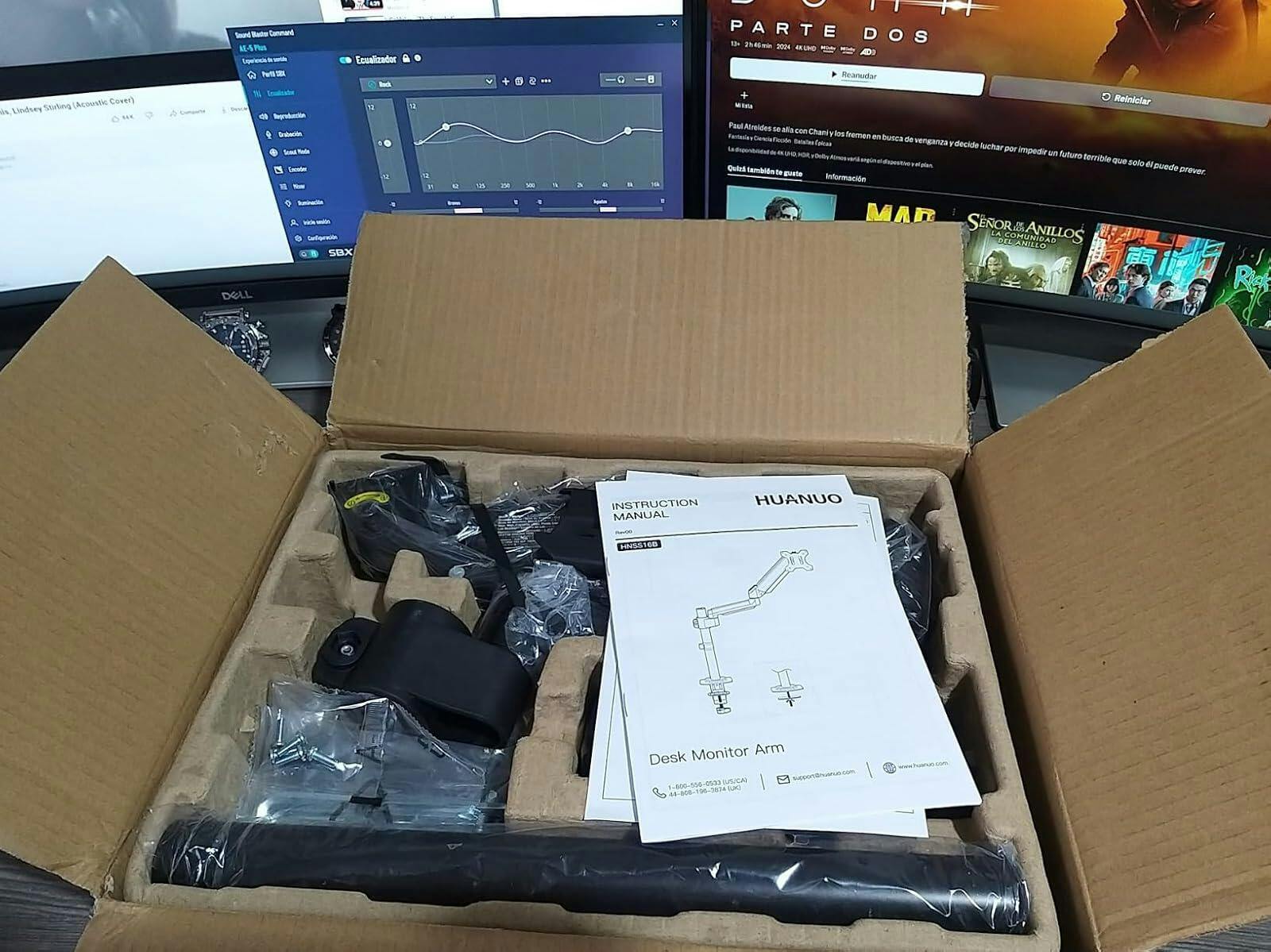

5. What should I do if anything is missing or damaged when I receive the package?

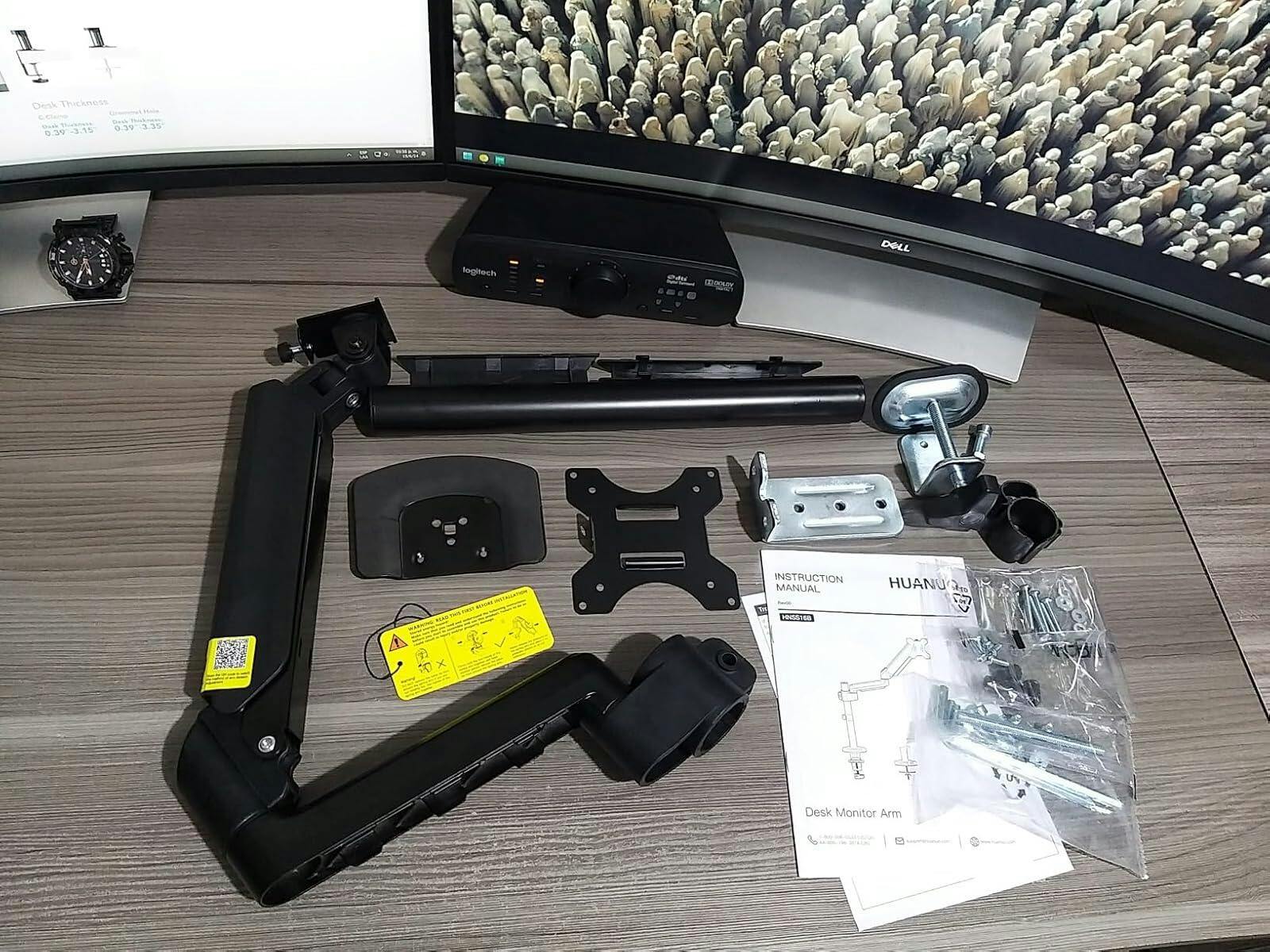

  • Everything needed for setup is included in the package. Before starting installation, check you have the manual and all listed parts. lf anything is missing or damaged, please contact us.

Note: Not all hardware included in the package will be used.

6. Is there any way to make the monitor mount a little higher?

  • If you have a thinner desktop, you could try placing a solid wooden block on top of the desk, between the desktop and the C-clamp. This will add a few inches of height.

7. Why don't the monitor arms maintain position?

  • For the arms to maintain position, gas spring tension needs to be adjusted (with monitors mounted) using the bolt on top of the arms. Hold upper arm horizontal while adjusting tension.

  • If the monitor rises up, turn the bolt in the ‘-’ direction to reduce tension (lower). If the monitor drops down, turn the bolt in the ‘+’ direction to increase tension (raise).
  • Once gas spring tension is adjusted, the arms maintain any position set by the user and can be moved freely during use.
  • If you have any issues accessing the tension adjustment bolt or adjusting tension correctly, please contact us for further assistance.

8. Why does the monitor tilt down by itself?

  • To stop the monitor arm tilt head dropping down, the bolt on the tilt head needs to be tightened.
  • Turn the bolt clockwise until the tilt head maintains position.
  • Ensure you can still tilt the monitor. Don't overtighten the bolt.
