Ergonomic Benefits: Raise monitors to ergonomic height, relieving the strain on the neck, back and shoulder; 2 stacking monitors configuration enhances the work efficiency.

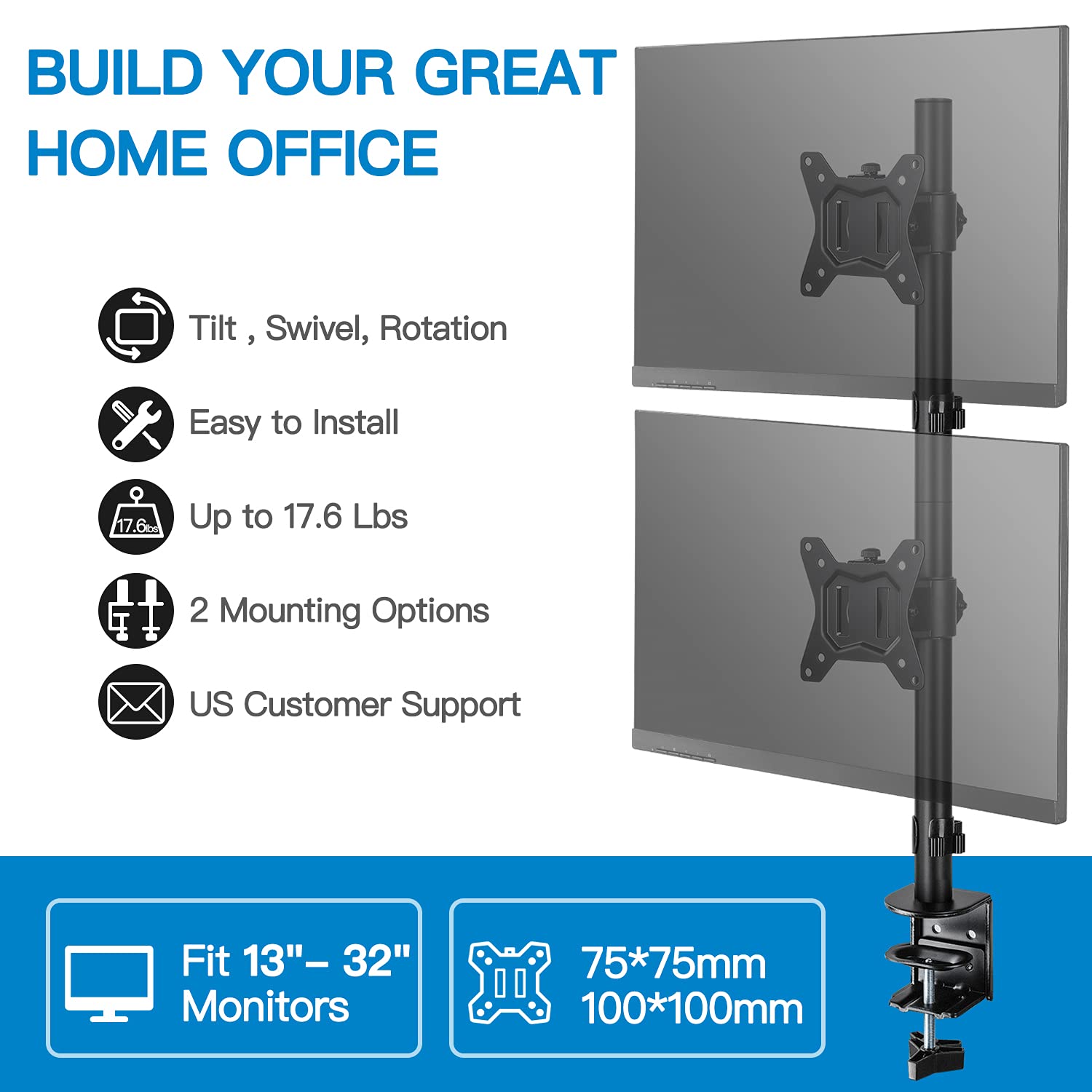

Screen Compatibility: Fits most screens 17” to 32” in size and 17.6 pounds in weight each with VESA 75x75mm or 100x100mm.

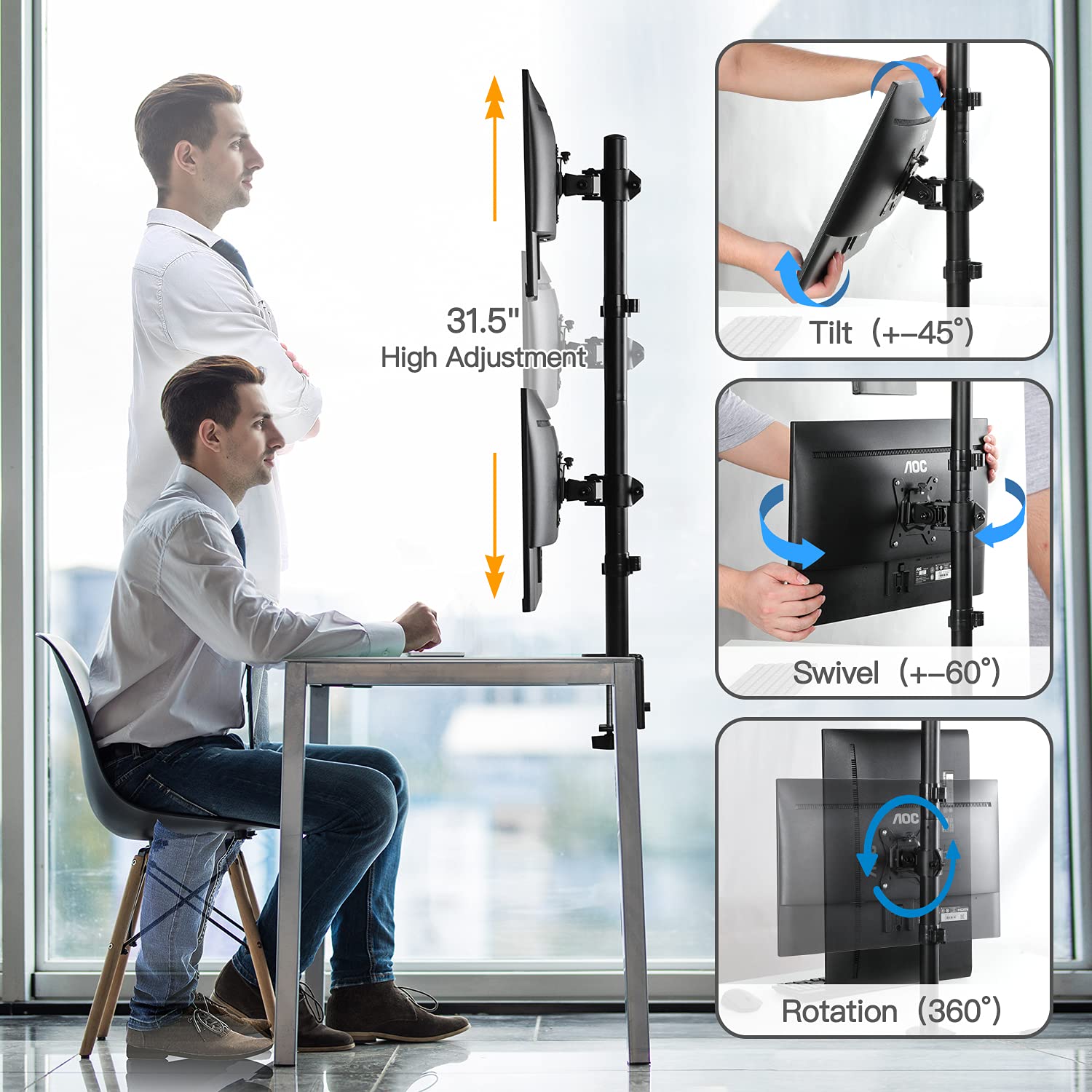

Fully Adjustable: Easy to set pc monitor wall mount dual stack to optimal view angle with -45 to +45 degree tilt, -60 to +60 degree swivel, and 360 degree rotation.

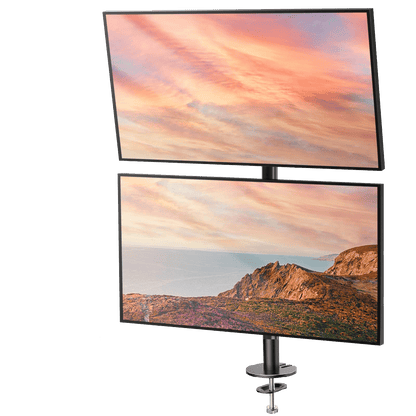

Save Space: This vertical monitor stand extra tall can hold 2 monitors on 1 stand, saving more space on your desktop and keeping your workstation spacious and clutter-free.
Reliability: The solid construction and stable clamp/grommet base for desk thickness up to 3.14", provide stable and secure holding for your monitors.
Part Number: HNHM5

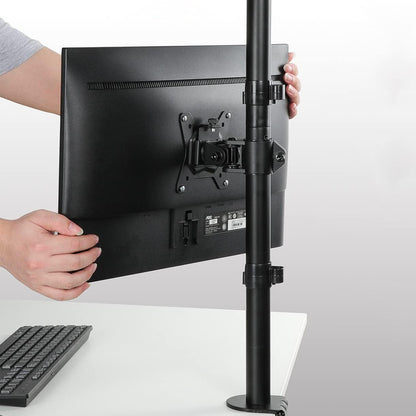

Details: Wanna stack one monitor over the other to enhance your work efficiency? HUANUO HNHM5 is a best chose for you! MADE FOR STACKING CONFIGURATION Mount 2 monitors vertically one over the other on 1 stand, making it more convenient for working with 2 monitors at the same time ERGONOMIC MONITOR RISER Raise monitors to ergonomic heights as your needs to make you free comfortable while working. The ergonomic design helps improve work posture to relieve strain on neck back and shoulder. SUPER SPACE SAVER & DESKTOP ORGANIZER Hold 2 monitors on 1 single stand in vertical array, clearing up much valuable space on the desk and making your desktop spacious and tidy. ADJUSTABLE FOR OPTIMAL VIEW After installed on the stand, your monitor can tilt from -45°to +45°and 360°rotate. Super easy to set your monitors at an optimal position as your need. SOLID & STABLE The solid steel construction makes HNHM5 stable and secure. Comes with both C clamp and Grommet kit, this stand fits both desks with or without a hole, ensures the safety of monitors weighing up to 22lbs. EASY INSTALLATION The removable VESA plates make it easier to install. The whole setup can be finished in 10 mins. To fix the tilt angle, you just need to adjust the little screw on the top of the VESA connector. INTEGRATED CABLE MANAGEMENT The clips on the stand keep the messy cables clean and organized and wrench stored for future adjustments.
1. How do I know whether my monitor is compatible with the monitor mount?
Ensure your monitor size and weight are within the ranges specified for the monitor mount.
Check that the VESA pattern of your monitor (distance between the four bolt holes on the back) is 75 x 75mm or 100 x 100mm. You may need to remove a stand or cover to access the VESA bolt holes. If your monitor doesn't have VESA holes you will need a VESA mount adapter (such as HNMUA4, available on Amazon).
Note: You can also use the HUANUO Monitor Mount Finder tool to see what monitor mounts are compatible with your monitor.
2. Do I need to drill a hole in my desk for monitor mounting?

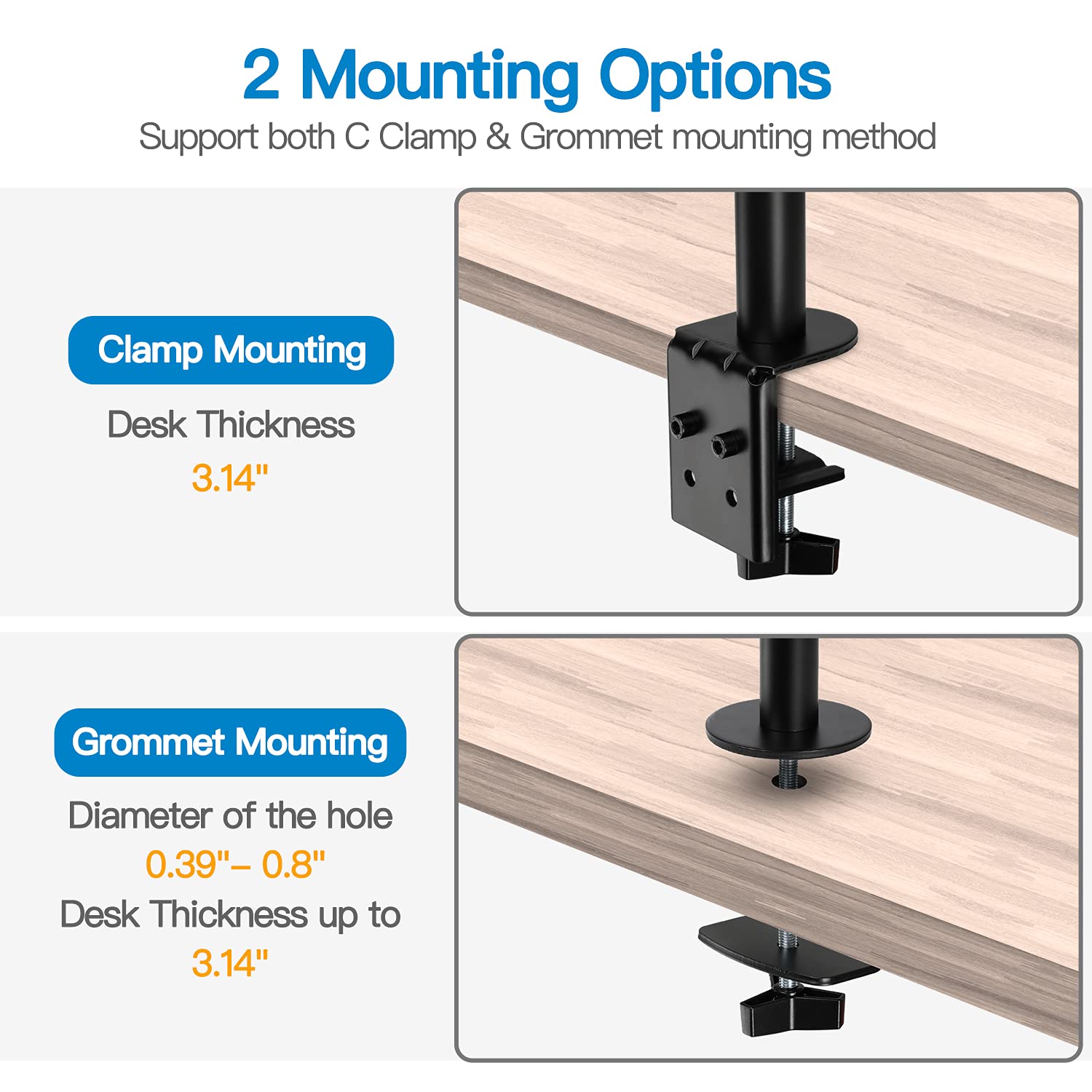

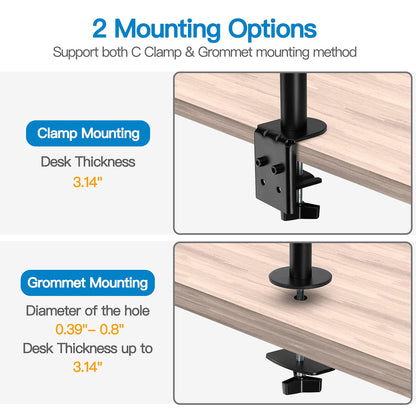

No. There are two mounting options. A C-clamp is included for simple mounting directly on the desk with no drilling or other work required. The alternative grommet hole mounting method requires an existing grommet hole or drilling of a hole, but you do not have to use this method.
3. Can I use a monitor mount on a glass desk?
If clamping a monitor mount on surfaces like glass or engineered wood, it is recommended to use an additional Monitor Mount Reinforcement Plate. These accessories provide a solid mounting surface and spread the load to protect the desk and stabilize the monitor mount. This is particularly important if you’re mounting multiple large screens on a dual monitor mount or triple monitor mount.
4. What can I do if my desk frame obstructs the monitor mount clamping position?
You can create a suitable clamping surface by placing a solid wooden block under the desktop, level with the desk frame. Alternatively, use grommet hole bolt-through clamping to mount away from the desk frame.
5. What should I do if anything is missing or damaged when I receive the package?
Everything needed for setup is included in the package. Before starting installation, check you have the manual and all listed parts. lf anything is missing or damaged, please contact us.
Note: Not all hardware included in the package will be used.
6. Is there any way to make the monitor mount a little higher?
If you have a thinner desktop, you could try placing a solid wooden block on top of the desk, between the desktop and the C-clamp. This will add a few inches of height.
7. Why don't the monitor arms maintain position?
For the arms to maintain position, gas spring tension needs to be adjusted (with monitors mounted) using the bolt on top of the arms. Hold upper arm horizontal while adjusting tension.
If the monitor rises up, turn the bolt in the ‘-’ direction to reduce tension (lower). If the monitor drops down, turn the bolt in the ‘+’ direction to increase tension (raise).
Once gas spring tension is adjusted, the arms maintain any position set by the user and can be moved freely during use.
If you have any issues accessing the tension adjustment bolt or adjusting tension correctly, please contact us for further assistance.
8. Why does the monitor tilt down by itself?
To stop the monitor arm tilt head dropping down, the bolt on the tilt head needs to be tightened.
Turn the bolt clockwise until the tilt head maintains position.
Ensure you can still tilt the monitor. Don't overtighten the bolt.
