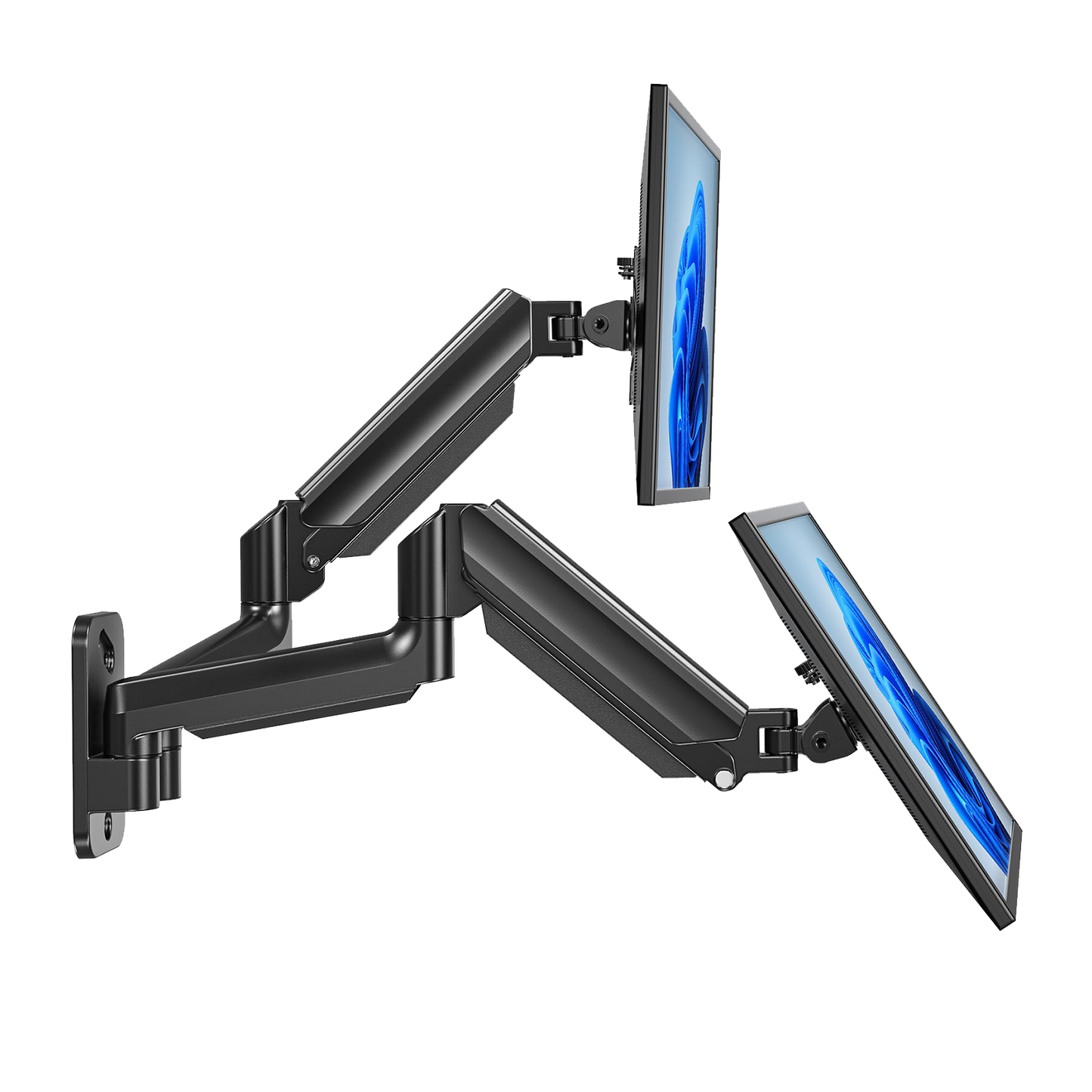

HUANUO Dual Monitor Wall Mount up to 32 inch Screens, Wall Monitor Mount with Gas Spring System, Height Adjustable Tilt, Swivel, Rotate, Dual Monitor Mount Holds 17.6 lbs, VESA 75 or 100mm

Regular price $99.99
$99.99 $99.99
Sale Sold out
Product Type

  • Hassle-Free
    Warranty
    Hassle-Free Warranty
  • 24-Month
    Warranty
    24-Month Warranty
  • Free
    Shipping
    Free Shipping
  • 30-Day
    Money Back
    30-Day Money Back

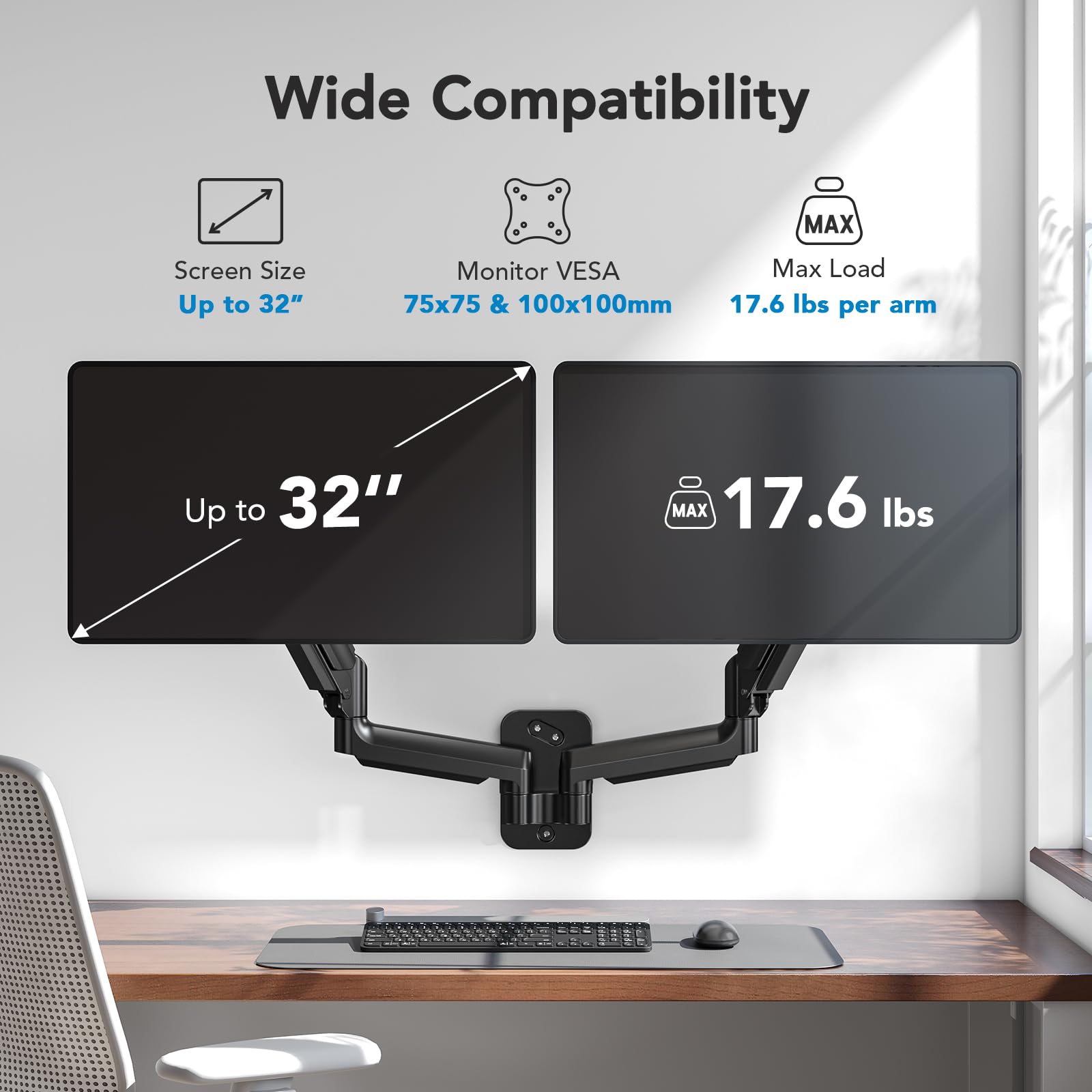

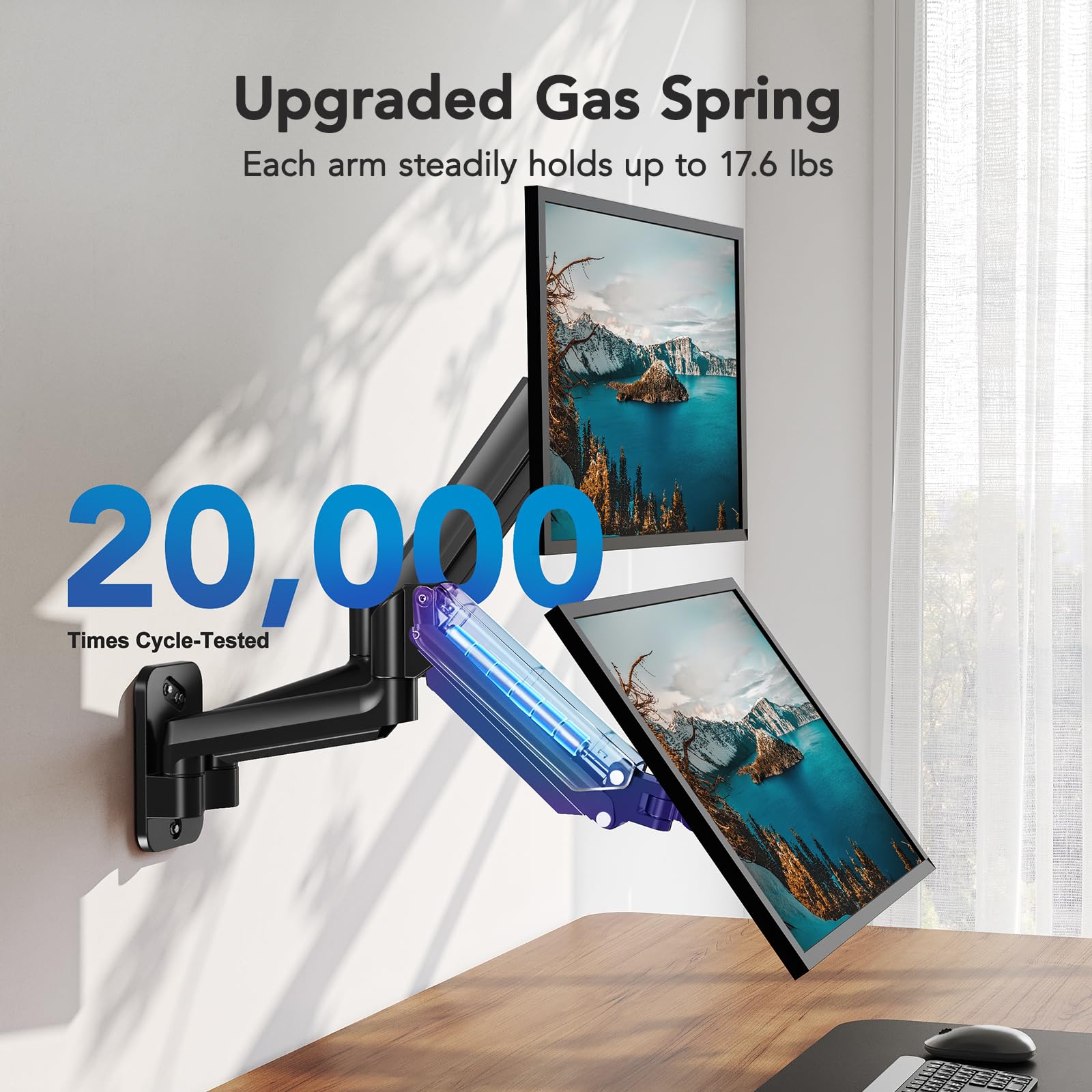

  • Fits Large 32″ Monitors: Crafted from aerospace-grade aluminum alloy with upgraded gas springs, our dual monitor wall mount is compatible with 17″–32″ flat or curved screens with VESA patterns 75x75 and 100x100mm, monitor weight range is 4.4-17.6 lbs. The sturdy arms can reliably support two computer screens without any sagging or wobble.

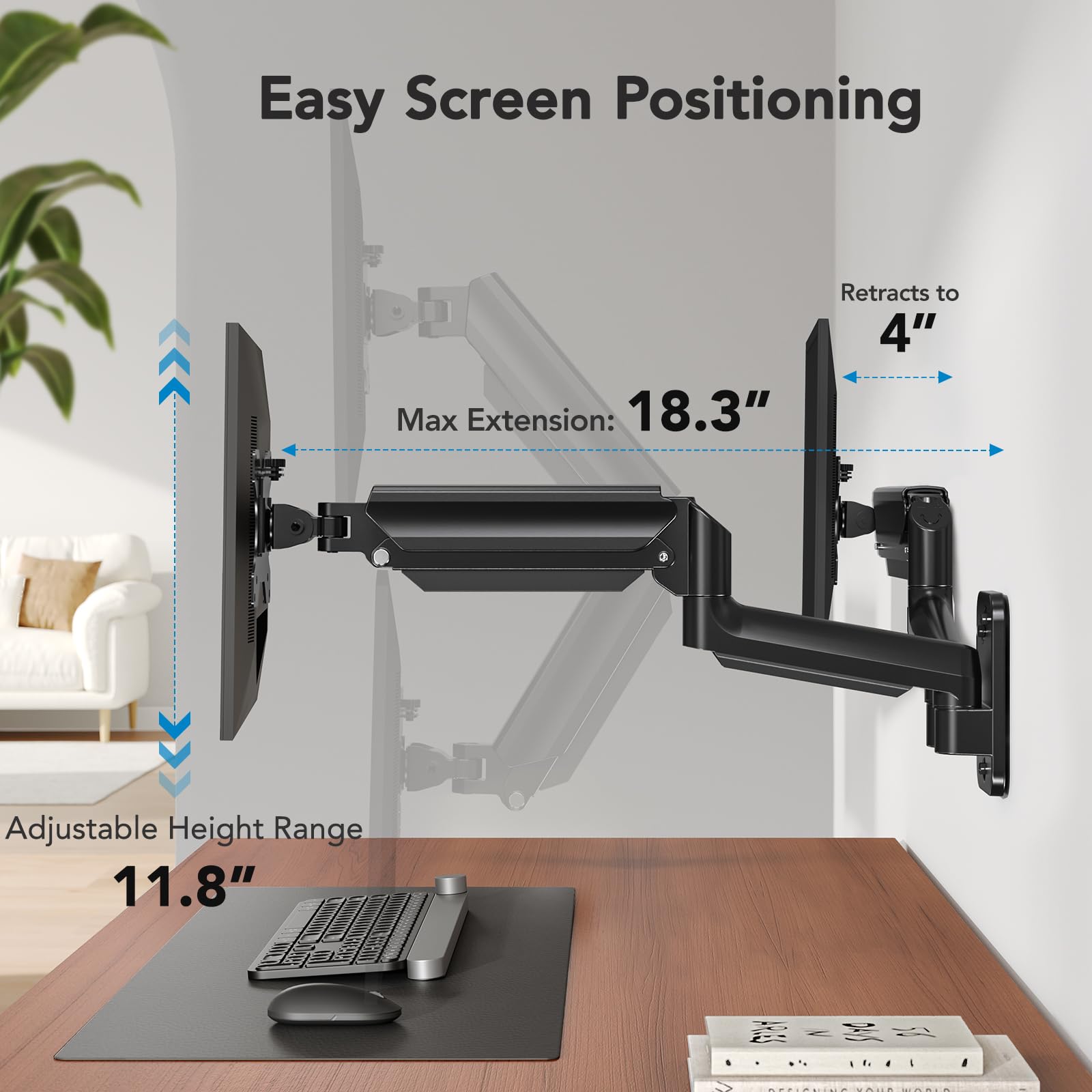

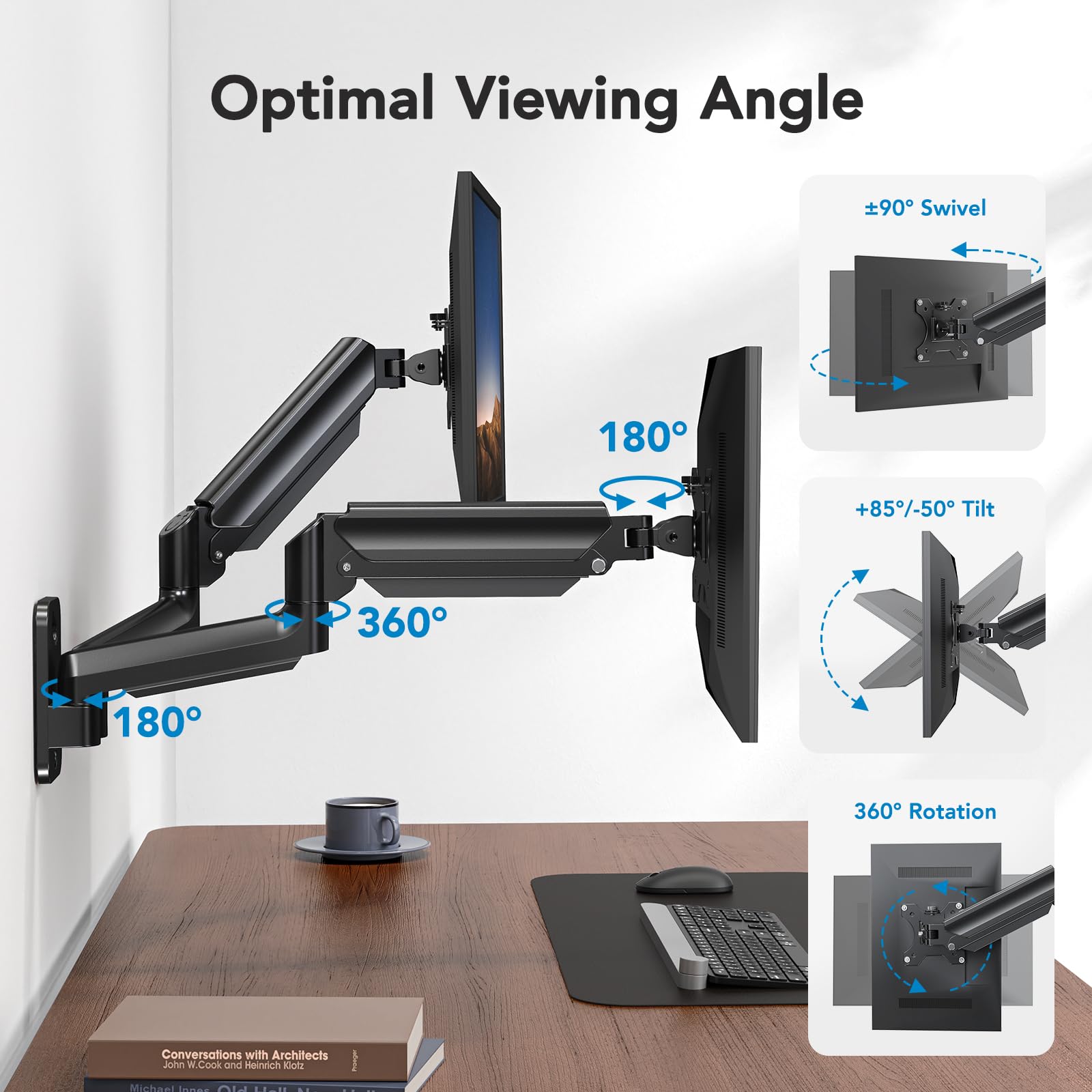

  • Fully Adjustable: The wall monitor mount features 360° rotation, +/-90° swivel, +85°/-50° tilt, and an adjustable height range of 11.8″, allowing you to find the perfect height and angle for work and entertainment. Extend your monitors up to 18.3″ from the wall for closer viewing or retract them back to only 4″ from the wall to save space.

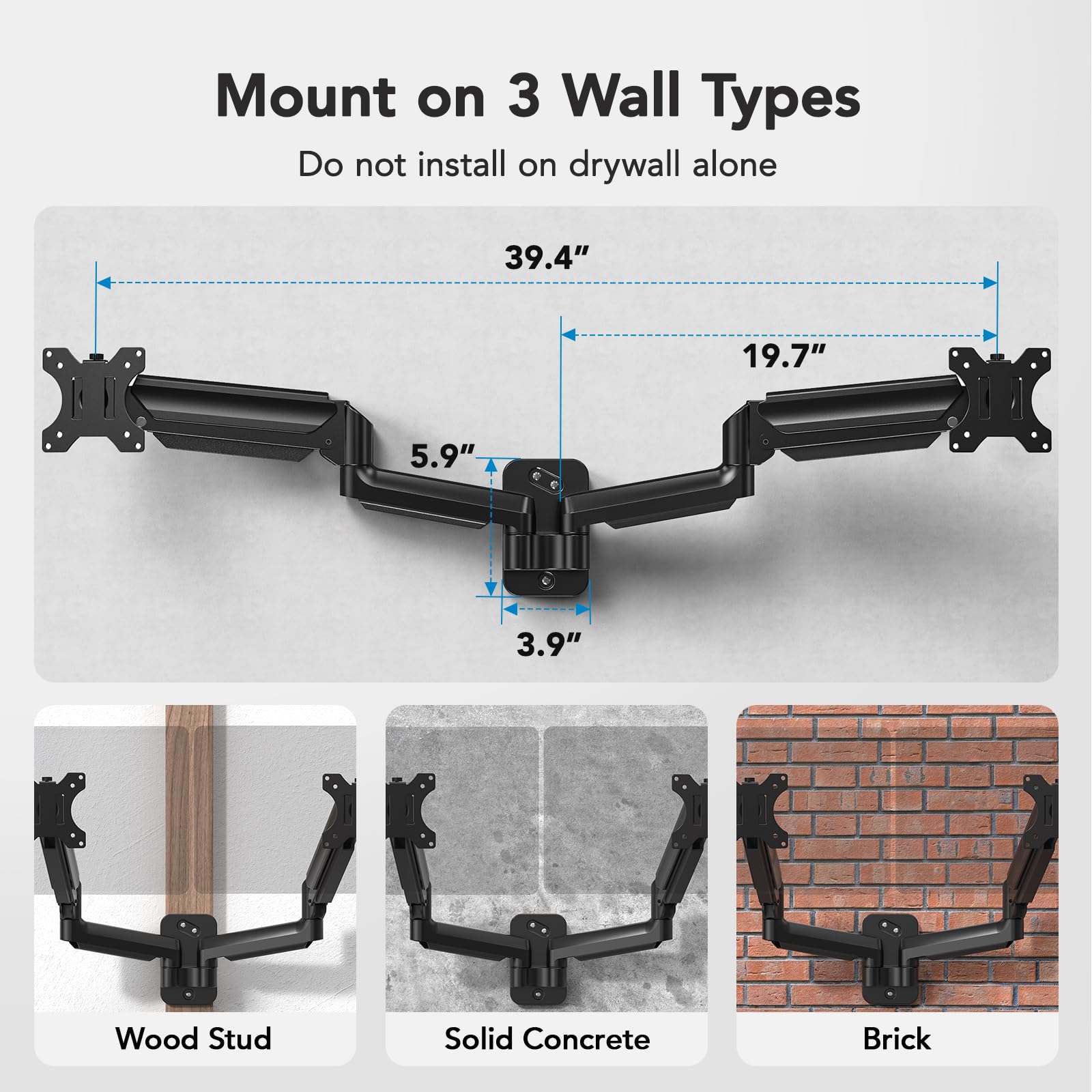

  • Easily Mount on 3 Wall Types: Our dual monitor mount can be installed on wood stud, solid concrete, or brick walls with the included mounting hardware. Simply attach the monitor plates, mount the arm assembly, then hang your monitors. Our friendly U.S.-based support team is available if you have any questions about installation or product selection.
  • Maximize Desk Space: Compared to monitor stands, our wall monitor mount arm allows you to position your monitors at the optimal height above your desktop, freeing up room for your laptop, keyboard, mouse, and other essentials. Integrated cable management provides a way to route cables along the arms for a neat and tidy workstation.

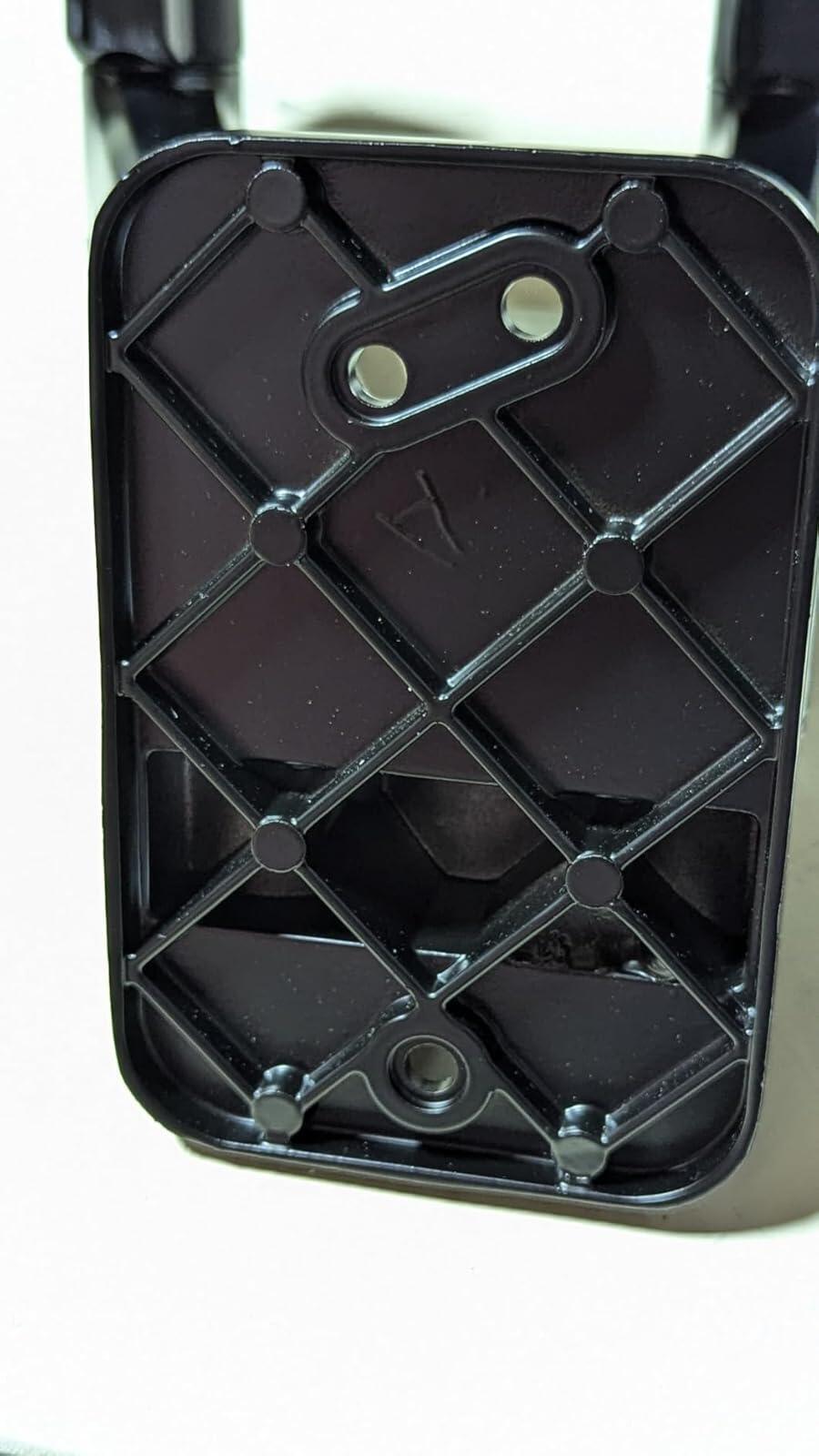

  • Mount in Any Room: Whether you enjoy watching sports, multitasking at your desk, or exercising in the gym, our dual monitor wall mount is designed to enhance your viewing experience. The steel wall plate measures only 5.9″ x 3.9″ to remain unobtrusive for a low-profile look that complements any space.
View full details
Specs
FAQ
Review

Specifications

HNWDS1
Model
Gas Spring Wall Mount
Type
17" to 32"
Monitor Size Range
75x75mm,100x100mm
VESA
+/-35°
Tilt
+/-90°
Swivel
360°
Rotation
17.6 lbs
Weight Capacity
12.6"
Max Arm Height

HUANUO HNDS6 Introduction Video

FAQ

1. How do I know whether my monitor is compatible with the monitor mount?

  • Ensure your monitor size and weight are within the ranges specified for the monitor mount.


  • Check that the VESA pattern of your monitor (distance between the four bolt holes on the back) is 75 x 75mm or 100 x 100mm. You may need to remove a stand or cover to access the VESA bolt holes. If your monitor doesn't have VESA holes you will need a VESA mount adapter (such as HNMUA4, available on Amazon).



Note: You can also use the HUANUO Monitor Mount Finder tool to see what monitor mounts are compatible with your monitor.

2. Do I need to drill a hole in my desk for monitor mounting?

  • No. There are two mounting options. A C-clamp is included for simple mounting directly on the desk with no drilling or other work required. The alternative grommet hole mounting method requires an existing grommet hole or drilling of a hole, but you do not have to use this method.

3. Can I use a monitor mount on a glass desk?

  • If clamping a monitor mount on surfaces like glass or engineered wood, it is recommended to use an additional Monitor Mount Reinforcement Plate. These accessories provide a solid mounting surface and spread the load to protect the desk and stabilize the monitor mount. This is particularly important if you’re mounting multiple large screens on a dual monitor mount or triple monitor mount.

4. What can I do if my desk frame obstructs the monitor mount clamping position?

  • You can create a suitable clamping surface by placing a solid wooden block under the desktop, level with the desk frame. Alternatively, use grommet hole bolt-through clamping to mount away from the desk frame.

5. What should I do if anything is missing or damaged when I receive the package?

  • Everything needed for setup is included in the package. Before starting installation, check you have the manual and all listed parts. lf anything is missing or damaged, please contact us.

Note: Not all hardware included in the package will be used.

6. Is there any way to make the monitor mount a little higher?

  • If you have a thinner desktop, you could try placing a solid wooden block on top of the desk, between the desktop and the C-clamp. This will add a few inches of height.

7. Why don't the monitor arms maintain position?

  • For the arms to maintain position, gas spring tension needs to be adjusted (with monitors mounted) using the bolt on top of the arms. Hold upper arm horizontal while adjusting tension.

  • If the monitor rises up, turn the bolt in the ‘-’ direction to reduce tension (lower). If the monitor drops down, turn the bolt in the ‘+’ direction to increase tension (raise).
  • Once gas spring tension is adjusted, the arms maintain any position set by the user and can be moved freely during use.
  • If you have any issues accessing the tension adjustment bolt or adjusting tension correctly, please contact us for further assistance.

8. Why does the monitor tilt down by itself?

  • To stop the monitor arm tilt head dropping down, the bolt on the tilt head needs to be tightened.
  • Turn the bolt clockwise until the tilt head maintains position.
  • Ensure you can still tilt the monitor. Don't overtighten the bolt.
